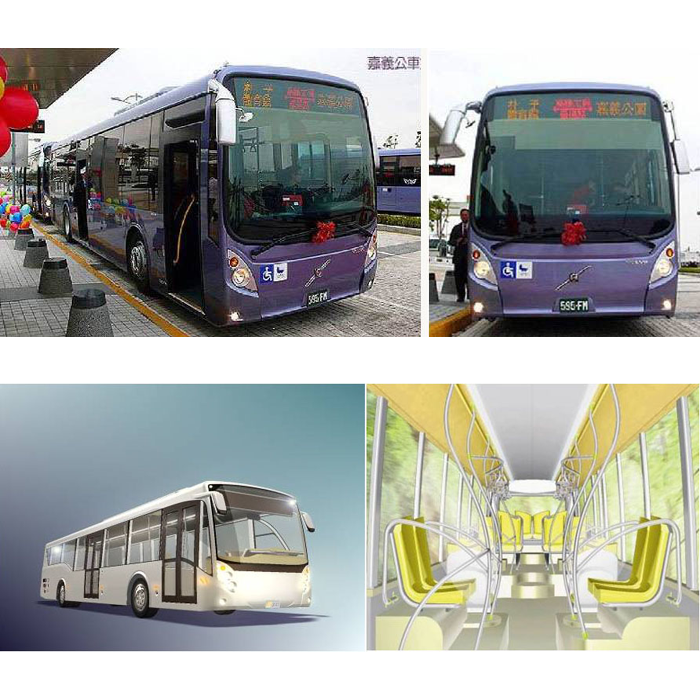

RUBY-L & Specifications








- Key Features -

Product Name

RUBY-L

Vehicle types

Low-Floor city bus-City bus

Model number

BHN12LA-1

Chassis brand / model

HINO / RK8JRSK



Body size

Total length: 11,850 mm

Overall width: 2,470 mm

Overall height: 3,205 mm

Wheelbase: 5,800 mm

Front suspension length: 2,600 mm

Rear suspension length: 3,450 mm

Axle track: (front / rear) 2,040 / 1,840

Approach / departure angle: 6 ° / 7 °



Weight data

Total weight: 14,500 kg

Chassis weight: 4,966 kg



Chassis basic parameters

Frame: Low-level type

Maximum power: 171.5kw (the 233PS) @ 2500RPM

Maximum speed: 95km / h

Maximum climbing capacity : 37.5

Minimum turning radius: 8,900 mm

Maximum braking distance: X

Transmission: manual, five-speed+reverse gearbox

Reduction ratio: 5.125

Suspension system: Equal length of steel spring, attached double acting shock absorbers and levelling bar

Tires and rims :10.00-20-14PR / 20x7.00T-offset 162 mm

Brake system : double-loop, full pneumatic braking with brake automatic adjuster



Electrical system

Fuel tank capacity: 250L

Voltage: 24 V

Battery: 12V-540kC (150AH) x 2 pics

Generator: 24V-90A



Subordinate equipment

LED route indicator

GPS LED display

On and off ticket Light box

Pole / crossbar / pull ring

Armrest

Fence

Get off the bell

Seat

Fire extinguisher

Emergency hammer

Failure marked plate

Driving sunshade

Parking sensor

Turning and reversing buzzer

The CITY BUS standard-a broadcast system



Optional device

Reversing Monitor

The side of the car monitor

Rear route LED indicator
