- Key Features -

Product Name

  RUBY-L

Vehicle types

  Low-Floor city bus-City bus

Model number

  BHN12LA-1

Chassis brand / model

HINO / RK8JRSK

Key Features

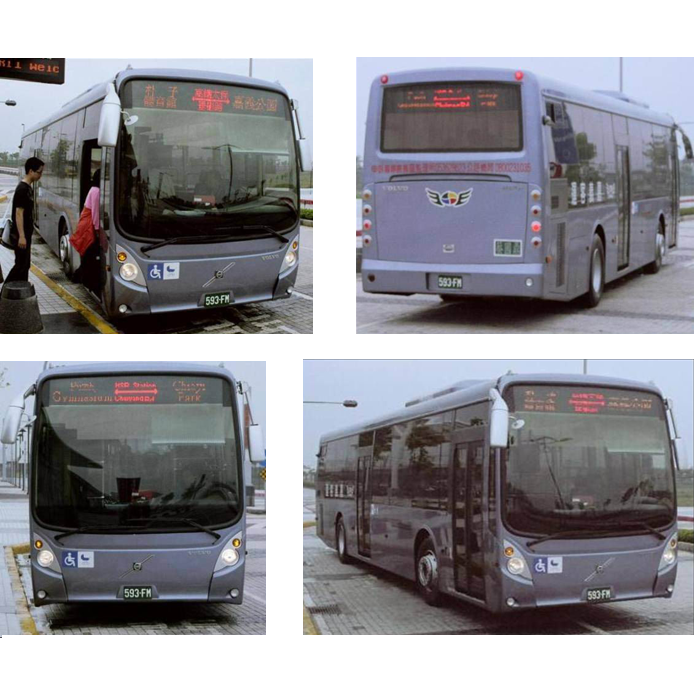

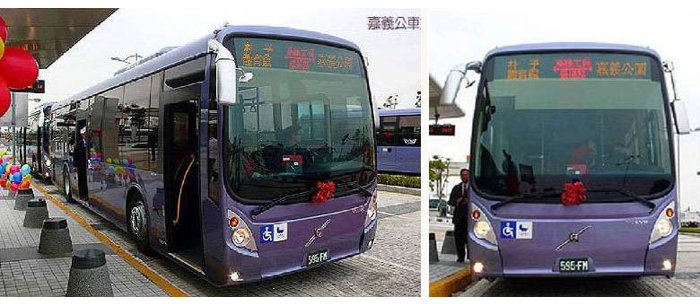

Low-Floor City Buses

Model name: RUBY-E, Barrier-Free Bus

Vehicle : Barrier-free city bus-City bus

Model number: BAA12EA-1

Chassis brand / model : IJI / D6123S05

Body size

Total length: 11,920 mm

Overall width: 2,495 mm

Overall height: 2,983 mm

Wheelbase: 5,950 mm

Front suspension length: 2,746 mm

Rear suspension length: 3,220 mm

Axle track: (front / rear) 2,096 / 1,836

Approach / departure angle: 6 ° / 7 °

A stepping ground: front door ≦ 350 mm, rear door ≦ 350 mm

Weight data

Maximum gross vehicle weight: 17,000 kg

Chassis weight: 5,010 kg

Main body configuration

Number of seats: 22

Standing number: 55

Door: a pair of bi-fold doors at front and rear

Windshield :,  laminated safety glass bonded in to the window frame.

Side windows:toughened glass and  laminated safety glass bonded in to the window frame.

Rear window:  laminated safety glass.

Mirrors: Manual adjustable

Air-conditioning system: SPAC_AC355 ceiling-mounted (Brand: sin shu che)

Chassis basic parameters

Frame: three-stage design, one step entrance

Maximum power: 194 kW (260 BHP) @ 2,000 RPM

Maximum speed: 80km / h

Maximum climbing capacity: 20

Minimum turning radius: 12m

Maximum braking distance: 10m

Automatic transmission: the ZF Ecomat 2_plus, 6HP502C

six-speed+reverse gearbox, integrated electronic control hydraulic retarder

Reduction ratio: 6.2

Suspension system: Wabco

electronically controlled pneumatic suspension control system

Tires and rims: 275/70 R22.5 "and 22.5" x 8.25 "(standard)

Braking System: Wabco pneumatic braking system

Electrical system

Fuel tank capacity: 185L

Voltage: 24 V

Battery: 2 x 12V/190 Ah

Generator: Prestolite AC172RA, 140 A/24 V

Subordinate equipment:

LED route indicator

GPS LED display

On and off ticket Lightbox

Pole / crossbar / pull ring

Armrest

Fence

Get off the bell

Seat

Fire extinguisher

Emergency hammer

Failure marked plate

Driving sunshade

Reversing radar

Turning and reversing buzzer

CITY BUS standard-a broadcast system

The exclusive accessibility District facilities

The slopes board (Ramp, Electric)

Optional device:

Reversing Monitor

The side of the car monitor

Rear route LED indicator

The slopes board (Ramp, electric)
