- Key Features -

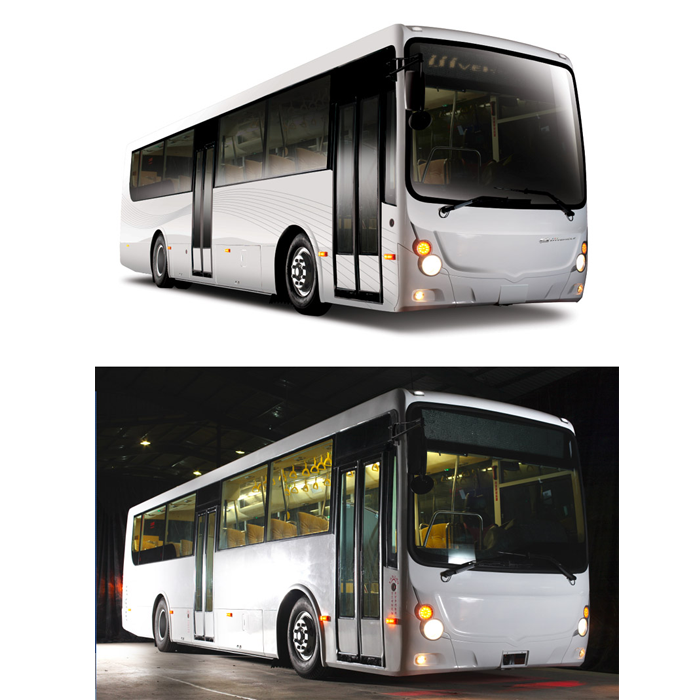

Product Name

  RENEE

Vehicle types

  Conventional City bus-City bus

Model number

  BHN12TA-1

Chassis brand / model

HINO / RK8JRSA

Body size

Overall length: 11,653 mm

Overal width: 2,495 mm

Overall height: 3,124 mm

Wheelbase: 5,800 mm

Front suspension length : 2,452 mm

Rear suspension length : 3,401 mm

Axle track: (front / rear) 2,040 / 1,840

Approach / departure angle: 6 ° / 7 °

Weight (ARTC measured data)

Total weight: 14,500 kg

Chassis weight: 4,656 kg

Vehicle empty weight: 9,860 kg

Front axle weight: 3,080 kg

Rear axle weight: 6,780 kg

Carrying capacity : 4,640 kg

Main body configuration

Number of seats: 29

Number of standing : 35

Door: a pair of bi-fold doors at front and middle

Windshield : laminated safety glass bonded in to the window frame.

Side windows:  toughened glass and   laminated safety glass bonded in to the window frame.

Rear window:  laminated safety glass.

Mirrors: Manual adjustable

Air-conditioning system: SPAC_AC262 split type (Brand: sin shu che)

Chassis basic parameters

Frame: straight girder type

Maximum power: 171.5kw (the 233PS) @ 2500RPM

Maximum speed: 95km / h

Maximum climbing capacity : 37.5

Minimum turning radius: 8,900 mm

Maximum braking distance: X

Transmission: manual, five-speed+reverse gearbox

Reduction ratio: 5.125

Suspension system: Equal length of steel spring, attached double acting shock absorbers and levelling bar

Tires and rims :10.00-20-14PR / 20x7.00T-offset 162 mm

Brake : double-loop, full pneumatic braking with brake automatic adjuster

Electrical system

Fuel tank capacity: 250L

Voltage: 24 V

Battery: 12V-540kC (150A? H) x 2 pics

Generator: 24V-90A

Subordinate equipment:

LED route indicator

GPS LED display

On and off ticket Light box

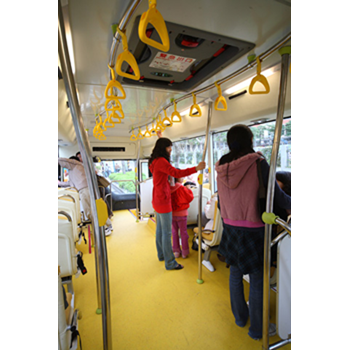

Pole / crossbar / pull ring

Armrest

Fence

Get off the bell

Seat

Fire extinguisher

Emergency hammer

Failure nameplate

Driving sunshade

Parking sensor

Turning and reversing buzzer

The CITY BUS standard-a broadcast system

Optional device

Reversing Monitor

The side of the car monitor

Route indicator after the vehicle LED
