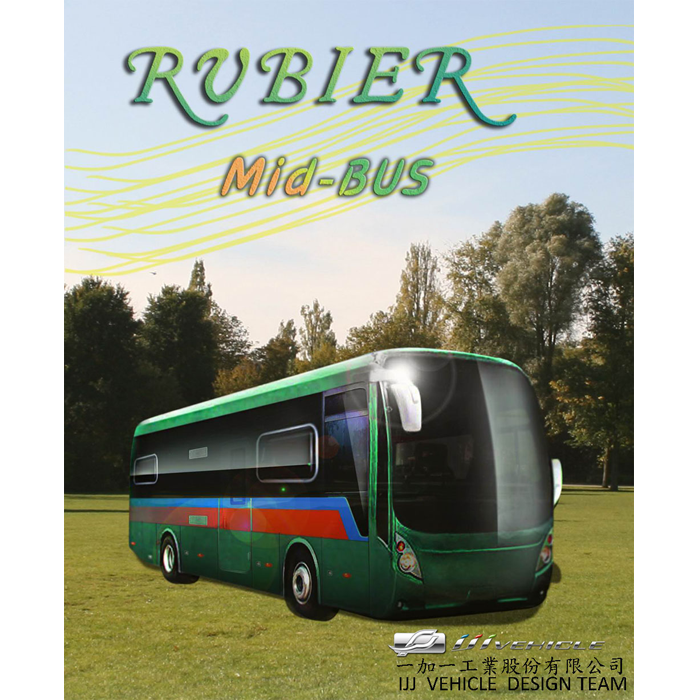

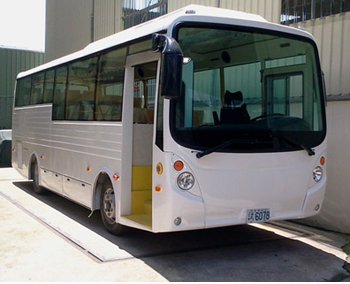

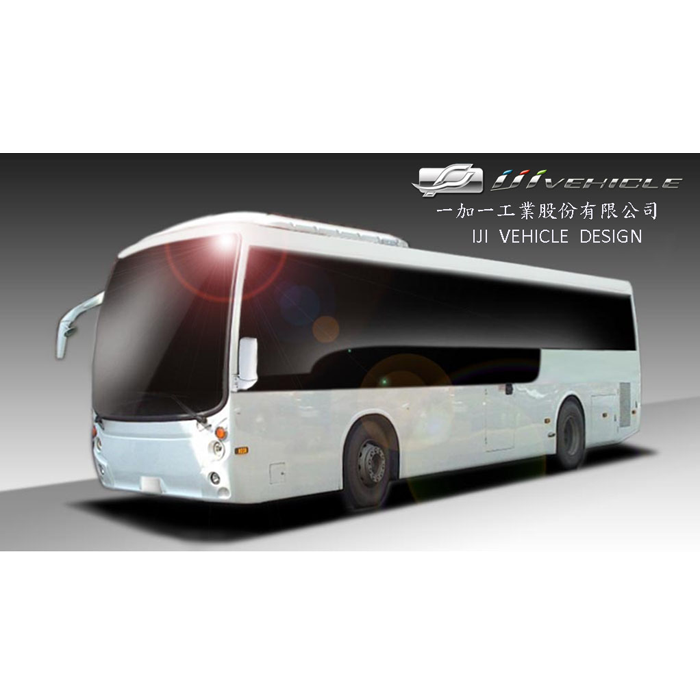

RUBIER & Specifications








- Key Features -

Product Name

RUBIER

Vehicle types

Mid-Bus 8M (City Bus)

Passenger

16-23 seats

Application

Short-Distance Intercity / Citybus

Model Numble

FA154L

Chassis

Faw CA6730CRD21



The Body Frame Structure was Cage Style Design.

Overall Framework Used in High-Tension Steel Tubes.

Lightweight and Reduce Pollution.

Also Increase Traffic Safety and Enhance Comfort.



- Main Specification -



Dimensions

Overall length7, 865 mm

Overall Width2,220 mm

Overall Height2,950 mm (Includes Overhead Air Conditioners)

Wheelbase3,850 mm

Tyres 215/75 R17.5



Weights

front axle load 3,000 kg

rear axle load 5,500 kg

Ratio4.875

GVW8,500 kg

Unladen Weight~ 6,200 kg

Luggage capacity ~1 m3



- Main Body Configuration -

Green Material of Insulation and Sound Absorbing.



Number of Seats

27 (Including Diver)



Engine

Cummins ISF3.8S4154/5154 SCR

Output 115/2600 Kw/rpm  (154hp/2600rpm)

Torque 500/1200-1900 N.m/rpm

Fuel Tank Capacity150L (Stardand)



Transmission

QJGT S5-70, 5speed/Reverse



Suspension and Steering

Front and RearLeaf Springs, 2 shock absorbers, Rigid front axle.

Power steering with built-in servo unit, Gear17.76



Brakes

Front and RearDrum Brakes (OptionABS, disc brakes)



Doors

Front door opening inward and to the front

Driver door opening outward and to the front



Electrical system

Number of batteries2 / Battery capacity12V/110 Ah

Voltage24 V

Alternators output28V/120 A
