| Product Name |
¡@ |
| Luxury Touring Bus / 12 m - HANSKE |
| Product Description |
¡@ |

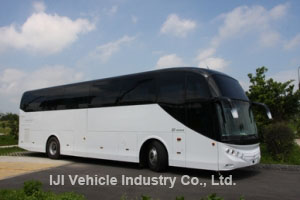

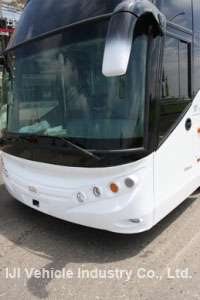

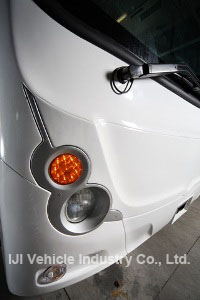

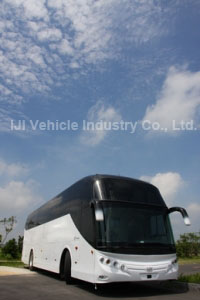

Luxury Touring Bus / 12 m
Model: HANSKE
Vehicle Type: Long-Distance Coach /Tourist Bus
Model Number: FS278DC
Chassis: Volvo / Scania / Mercedes-Benz / Hino / Isuzu /Fuso...etc
Integration Structure Frame Designby Cured Surface Ideas, Refresh Human Feelings
MainSpecification
Overall length: 12,145 mm
Overall Width: 2,481 mm
Overall Height: 3,427 mm
Chassis Type: ~12M
Wheelbase: 5,800 ~ 6,200 mm
Tilt Angle: Over 28˚
Main BodyConfiguration
Body Structure: Cage Style (more Safe and Comfortable)
Overall Framework Used inHigh-Tension Steel Tubes
Environmentally-FriendlySound-Absorbing, Insulation Materials
Number of Seats: 45 (Including Diver, Assistant)

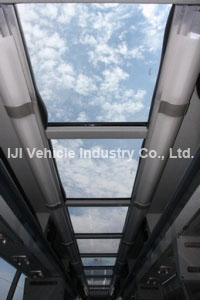

Skylight (Option)
Fuel Tank Capacity: 250L (Option)
Body Weight: ~6,200 kg
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Luxury Touring Bus / 12 m - HANSKE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Luxury Touring Bus / 12 m - HANSKE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Luxury Touring Bus / 12 m - HANSKE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Luxury Touring Bus / 12 m - HANSKE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Conventional urban bus / 12 m - RENEE |
| Product Description |
¡@ |

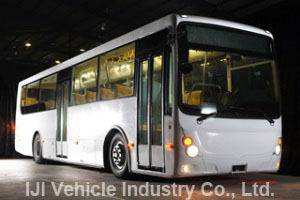

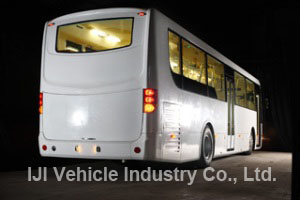

Conventional urban bus / 12 m
Model : RENEE
Vehicle types:conventional city bus-City bus
Model number: BHN12TA-1
Chassis brand / model: HINO / RK8JRSA
Body size
Overall length: 11,653 mm
Overal width: 2,495 mm
Overall height: 3,124 mm
Wheelbase: 5,800 mm
Front suspension length : 2,452 mm
Rear suspension length :
3,401 mm rear
Axle track: (front / rear) 2,040 / 1,840
Approach / departure angle: 6 ¢X / 7 ¢X
Weight (ARTC measured data)
Total weight: 14,500 kg
Chassis weight: 4,656 kg
Vehicle empty weight: 9,860 kg
Front axle weight: 3,080 kg
Rear axle weight: 6,780 kg
Carrying capacity : 4,640 kg
Main body configuration
Number of seats: 29
Number of standing : 35
Door: a pair of bi-fold doors at front and middle
Windshield :, laminated safety glass bonded in to the window frame.
Side windows:toughened glass and laminated safety glass bonded in to the window frame.
Rear window: laminated safety glass.
Mirrors: Manual adjustable
Air-conditioning system: SPAC_AC262 split type (Brand: sin shu che
Chassis basic parameters
Frame: straight girder type
Maximum power: 171.5kw (the 233PS) @ 2500RPM
Maximum speed: 95km / h
Maximum climbing capacity : 37.5
Minimum turning radius: 8,900 mm
Maximum braking distance: X
Transmission: manual, five-speed+reverse gearbox
Reduction ratio: 5.125
Suspension system: Equal length of steel spring, attached double acting shock absorbers and levelling bar
Tires and rims :10.00-20-14PR / 20x7.00T-offset 162 mm
Brake : double-loop, full pneumatic braking with brake automatic adjuster
Electrical system
Fuel tank capacity: 250L
Voltage: 24 V
Battery: 12V-540kC (150A? H) x 2 pics
Generator: 24V-90A

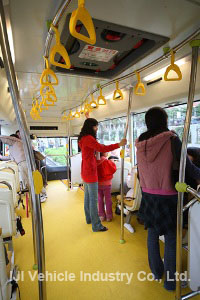

Subordinate equipment:
LED route indicator
GPS LED display
On and off ticket Light box
Pole / crossbar / pull ring
Armrest
Fence
Get off the bell
Seat
Fire extinguisher
Emergency hammer
Failure nameplate
Driving sunshade
Parking sensor
Turning and reversing buzzer
The CITY BUS standard-a broadcast system
Optional device:
Reversing Monitor
The side of the car monitor
Route indicator after the vehicle LED
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Conventional urban bus / 12 m - RENEE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Conventional urban bus / 12 m - RENEE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Conventional urban bus / 12 m - RENEE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Conventional urban bus / 12 m - RENEE |
| Product Description |
¡@ |
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Coach / Tourist Bus |
| Product Description |
¡@ |
Luxury Touring Bus / 12 m ¡V HANSKE
a.) Newly designed ¡§ Sporting trend¡¨.
b.) Awarded with Golden Torch award and Big 10 Enterprises of the Year Design Prize.
c.) HANSKE vehicle body Patent protection
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Coach / Tourist Bus |
| Product Description |
¡@ |
Luxury Touring Bus / 12 m ¡V HANSKE
Customer performance
(Tourism Factory)
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Coach / Tourist Bus |
| Product Description |
¡@ |

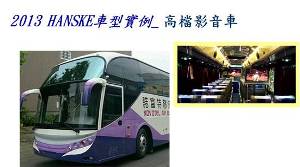

Luxury Touring Bus / 12 m ¡V HANSKE
Customer performance
(NOVOTEL AIR BUS with high quality Entertainment - HDMI Stereo set)
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Coach / Tourist Bus |
| Product Description |
¡@ |
Luxury Touring Bus / 12 m ¡V HANSKE
Customer performance

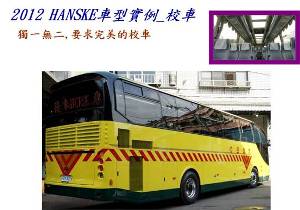

(Perfect requested School Bus)
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Coach / Tourist Bus |
| Product Description |
¡@ |

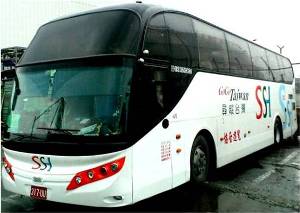

Luxury Touring Bus / 12 m ¡V HANSKE
Customer performance
(GoGo Taiwan)
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Coach / Tourist Bus |
| Product Description |
¡@ |

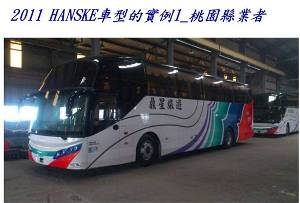

Luxury Touring Bus / 12 m ¡V HANSKE
Customer performance
(Starry Travel)
|
|
|
|
¡@ |
| Product Name |
¡@ |
| Coach / Tourist Bus |
| Product Description |
¡@ |

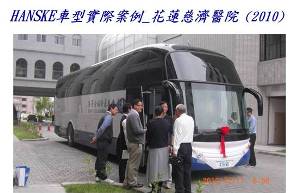

Luxury Touring Bus / 12 m ¡V HANSKE
Customer performance
(Buddhist Tzu Chi General Hospital)
|
|
|
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
